Why your subfloor is lying to you
Floor squeaks are caused by friction between two surfaces, usually the subfloor and a floor joist or the floorboard and a nail. This occurs when fasteners lose their grip or when humidity causes the wood to shrink and expand, creating a gap that allows for movement under weight. Most guys skip the leveling compound. They think the underlayment will hide the dip. It won’t. I spent three days grinding concrete on a job last month just so the floor wouldn’t click like a castanet. That job taught me that if you do not respect the subfloor, the subfloor will humiliate you in front of your client. You can smell the oak dust and the WD-40 in the air when a pro walks into a room like that. I know the sound of a failing subfloor from three rooms away. It is a sharp, mocking chirp that tells me a nail has lost its purchase in the lumber. When we talk about hardwood floors or laminate, we are talking about a system. If one part of the system moves, the whole thing fails. This is especially true near showers where moisture levels fluctuate wildly, causing the wood to swell and eventually pull away from the fasteners. When that happens, the grout lines in your tile start to crumble because the subfloor is flexing too much. It is all connected.
“A floor is only as good as the subfloor beneath it; deflection is the enemy of every joint.” – Master Flooring Axiom

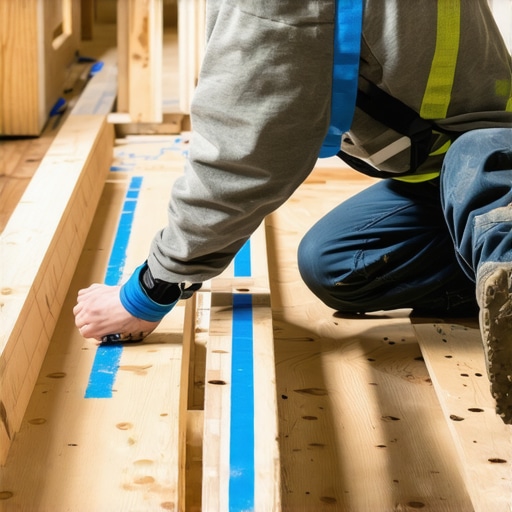

The blue tape hack for precise targeting
The blue tape hack involves using painter’s tape to map out the exact location of floor joists across a finished surface without leaving residue. By finding the joist once and following the layout with tape, you create a visual grid for precise screw placement during squeak repairs. You start by finding a single joist using a high-powered magnet or a deep-sensing stud finder. Once you find the center of that first joist, you mark it. But you do not mark the floor itself. You lay down a strip of blue painter’s tape. Then you measure out sixteen or twenty four inches, whatever the local building code dictated when the house was built. You run long parallel lines of tape across the room. This gives you a clear path to drive your screws without guessing. There is nothing worse than driving a trim screw into a piece of expensive white oak only to realize you missed the joist and hit nothing but air. Now you have a hole to fill and a squeak that is still laughing at you. In my twenty five years of doing this, I have seen too many rookies turn a subfloor into swiss cheese because they were too lazy to map their lines. Precision is not a suggestion. It is the job.
| Fastener Type | Janka Rating Compatibility | Pull-out Strength (PSI) | Recommended Use |
|---|---|---|---|
| 10d Common Nail | Low to Medium | 150 | Subfloor framing only |
| 2-inch Floor Screw | All Types | 450 | Subfloor to Joist |
| Cleat Nail | High (Oak/Maple) | 280 | Hardwood planks |
| Trim Screw | Medium | 200 | Surface repairs |
The physics of the expansion gap
The expansion gap is a mandatory space left around the perimeter of a room to allow the flooring material to expand and contract with humidity. Without this gap, the floor will press against the walls, causing the planks to buckle or the locking mechanisms on laminate to snap under the immense pressure of the expanding wood cells. I have seen wide-plank walnut floors cup so bad they looked like potato chips because some installer jammed them tight against the drywall. Wood is a living thing. Even after it is cut and finished, the cellulose fibers react to the moisture in the air. When the humidity rises, the wood expands. When the furnace kicks on in the winter and the air gets dry, the wood shrinks. If you have not left a gap of at least one quarter inch, or sometimes one half inch for larger rooms, you are asking for a disaster. The blue tape hack helps here too. You can mark your expansion lines to ensure the baseboard or shoe molding will actually cover the gap. I have no patience for guys who eyeball this. Use a spacer. Use your brain. If the floor cannot breathe, it will scream. It is that simple.
- Inspect the subfloor for moisture levels before installation
- Map joists every 16 inches using the blue tape method
- Check for deflection using a 10 foot straight edge
- Pre-drill holes in hardwood to prevent splitting
- Use specialized breakaway screws for carpeted areas
How moisture ruins the quiet
Moisture content in wood must be within two to four percent of the subfloor moisture to prevent structural noise and movement. When these two materials are not in equilibrium, they will pull at each other, causing the fasteners to loosen and the wood to rub, which creates the classic squeak. This is why acclimation is not optional. I have walked off jobs where the homeowner wanted me to install a floor the day it was delivered. I told them to call me in a week. The wood needs to sit in the room where it will live. It needs to breathe the same air. If you ignore this, the floor will shrink three months later and you will have gaps large enough to lose a credit card in. Near showers, this is even more critical. The high humidity in a bathroom can cause the subfloor to swell, which then pushes up against the hardwood or laminate in the hallway. This movement breaks the bond of the adhesive or the grip of the nail. You end up with a floor that feels like a trampoline. You need a moisture barrier. You need to understand the chemistry of the bond. If the moisture is too high, the adhesive will never cure correctly. It will stay gummy and the floor will shift forever. There is no shortcut for physics.
“Wood flooring will perform best when the interior environment is controlled to stay within a relative humidity range of 30 to 50 percent.” – NWFA Technical Guidelines
The chemical bond of silence
Subfloor adhesives provide a secondary layer of security that prevents wood-to-wood contact and reduces the reliance on mechanical fasteners alone. Modern polyurethane adhesives create a flexible yet incredibly strong bridge between the joist and the subfloor. This flexibility is vital. It allows the house to move slightly without the fasteners snapping or rubbing against the wood fibers. When I am fixing a squeak from below in a crawlspace, I use a bead of high-quality construction adhesive in the gap between the joist and the plywood. Then I use a shim, but I do not drive it in hard. You just snug it. If you drive it too hard, you lift the subfloor and create a new squeak somewhere else. It is a delicate balance. You are looking for a structural marriage between the materials. When that bond is right, the floor is silent. It feels solid. It feels like it was built by someone who actually gives a damn. The blue tape hack ensures that when you are working from above, your screws hit that glue line on the joist. It is about stacking your successes. One good decision on top of another. That is how you build a floor that lasts fifty years. Don’t be the guy who thinks waterproof means indestructible. Don’t be the guy who ignores the subfloor. Be the guy who knows why the wood is moving. Be the pro.
